PRODUCT

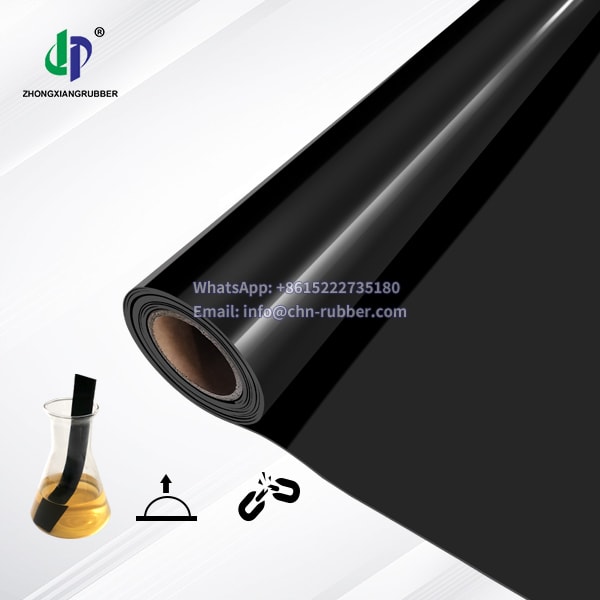

Black high and low temperature resistant viton rubber sheet
Reference Standard: ASTM standard
Quality Certification: SGS RoHS2.0 REACH
Thickness: Available in 1mm to 100mm; Thickness over 15mm, available in sheet form
Specification (W/L):
Width: Standard 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: Standard 5mtrs 10mtrs 15mtrs 20mtrs. Available upon request
Color: Black
Packing Information: Regular / Up to your choice
Packed with plastic film.
Packed with plastic film and with PP woven bag.
Wooden pallet.
According to the customer request, fixed-length or heavy package.
Product Supply Form: Roll / Sheet or Plate / Strip
Get more information:
Email: info@chn-rubber.com
P.H & Wechat: 008615222735180
VITON RUBBER ROLL PERFORMANCE & SPECIFICATIONS
| FKM RUBBER SHEET TECHNICAL PARAMETERS | |||||||
| Code | Specific Gravity | Hardness (+/-5) | Tensile Strength | Elongation at Break | Colour | Shape | Finish Type |
| g/cm³ | Shore A | Mpa | (min） % | --- | Roll/Plate | ||
| STANSDARD | ASTM D397 | ASTM D2240 | ASTM D412 | ASTM D412 | --- | --- | --- |
| ZXZRS20001V | 1.9+/-0.05 | 70 | 7-8 | 300 | Black/Red/White/Green/Blue | Roll OR Plate | Smooth in both sides OR 1/2 With sides cloth OR 1 side With bonding layer OR 1 side With anti-slip texture |
| ZXZRS20001V | 2.0+/-0.05 | 70 | 5-6 | 250 | Black/Red/White/Green/Blue | Roll OR Plate | |
| Note: 1MPa =10.2 Kg/cm² 1N/mm =1.02 Kg/cm | |||||||
| FKM RUBBER SHEET SPECIFICATION | ||||||
| thk/mm | Weight kgs/m² Per Roll | Width/m | Length/m | Insertion | ||
| S.G1.9g/cm³ | S.G2.0g/cm³ | Material | Layers | |||
| 1 | 18.24 | 24.00 | Standard width | 5m/10m/15m/20m | Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas | / |
| 1.5 | 29.64 | 39.00 | Standard width | 5m/10m/15m/20m | / | |
| 1.7 | 34.2 | 45.00 | Standard width | 5m/10m/15m/20m | 1PLY | |
| 2 | 41.04 | 54.00 | Standard width | 5m/10m/15m/20m | 1PLY | |
| 3 | 63.84 | 84.00 | Standard width | 5m/10m/15m/20m | 1PLY | |
| 4 | 86.64 | 114.00 | Standard width | 5m/10m/15m/20m | 1PLY | |
| 5 | 109.44 | 144.00 | Standard width | 5m/10m/15m/20m | 2PLY | |
| 6 | 132.24 | 174.00 | Standard width | 5m/10m/15m/20m | 3PLY | |
| 8 | 177.84 | 234.00 | Standard width | 5m/10m/15m/20m | 4PLY | |
| 10 | 223.44 | 294.00 | Standard width | 5m/10m/15m/20m | 5PLY | |
| 12 | 269.04 | 354.00 | Standard width | 5m/10m/15m/20m | 8PLY | |
| 15 | 337.44 | 444.00 | Standard width | 5m/10m/15m/20m | 10PLY | |
| 20 | 76 | 80 | Standard width | 5m/10m/15m/20m | ≥10PLY | |
| 25 | 95 | 100 | Standard width | 5m/10m/15m/20m | ≥10PLY | |
| 30 | 114 | 120 | Standard width | 5m/10m/15m/20m | ≥10PLY | |
| 35 | 133 | 140 | Standard width | 5m/10m/15m/20m | ≥10PLY | |
| 50 | 190 | 200 | Standard width | 5m/10m/15m/20m | ≥10PLY | |
* Tabulated weight values are provided for informational purposes only. As dimensional specifications of rubber sheets are fully customizable per project requirements, actual weights may vary accordingly. For precise weight calculations tailored to your application, please submit specific technical parameters to our engineering team.
* Please ensure the product meets your application specification prior to order placement.
Insertion materials:
 |
 |
 |
 |
| Nylon canvas | Mesh fabric | Nylon mesh fabric | Encrypted canvas |
Viton rubber roll is a synthetic rubber that is made from polymers. It is known for its resistance to heat and chemicals, and has a wide variety of applications. Viton rubber rolls are used in many industries, including the automotive, aerospace, and manufacturing industries. Tianjin China Rubber Co.,Ltd. was established in 2000, is a professional manufacturer of Viton rubber roll. The company is located in Tianjin Province, with a construction area of 68,000 square meters. More than 170 technicians. The company has advanced vulcanization machines, calendering machines, laminating machines and other production and test equipment. The company has been adhering to the "quality first, customer first" principle, and constantly expands the market with high quality products, reasonable prices and good service. The products are widely used in electronics, chemicals, food, medicine etc.
