Reference Standard: ASTM standard
Quality Certification: SGS RoHS2.0 REACH
Thickness: Available in 1mm to 100mm; Thickness over 15mm, available in sheet form
Specification (W/L):
Width: Standard 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: Standard 5mtrs 10mtrs 15mtrs 20mtrs. Available upon request
Color: Black
Packing Information: Regular / Up to your choice
Packed with plastic film.
Packed with plastic film and with PP woven bag.
Wooden pallet.
According to the customer request, fixed-length or heavy package.
Product Supply Form: Roll / Sheet or Plate / Strip
Get more information:
Email: info@chn-rubber.com
P.H & Wechat: 008615222735180

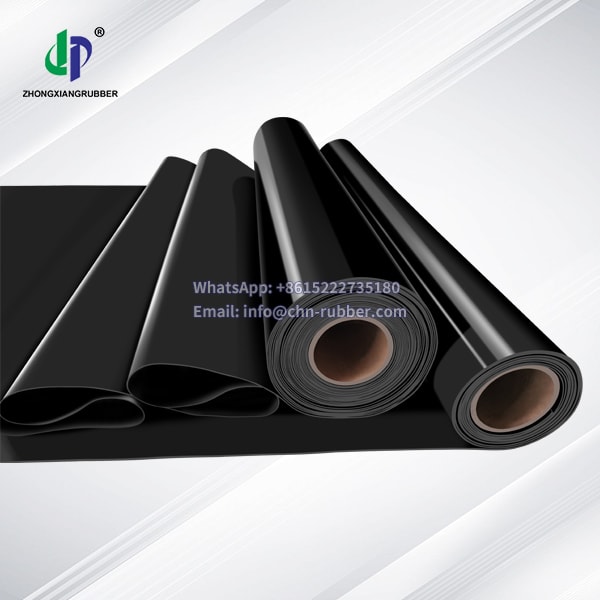

High quality rubber sheet is crafted from FKM (Viton), a premium fluorocarbon elastomer prized for its exceptional performance in extreme environments. With a dense 1.9 specific gravity compound, this Viton sheet offers robust durability and long-lasting service life. Engineered for demanding applications, it combines outstanding chemical compatibility with broad temperature tolerance, making it an ideal sealing and gasket material where ordinary rubbers fail.
FKM RUBBER SHEET TECHNICAL PARAMETERS | |||||||
Code | Specific Gravity | Hardness (+/-5) | Tensile Strength | Elongation at Break | Colour | Shape | Finish Type |
g/cm³ | Shore A | Mpa | (min) % | --- | Roll/Plate | ||
STANSDARD | ASTM D397 | ASTM D2240 | ASTM D412 | ASTM D412 | --- | --- | --- |
ZXZRS20001V | 1.9+/-0.05 | 70 | 7-8 | 300 | Black/Red/White/Green/Blue | Roll OR Plate | Smooth in both sides OR 1/2 With sides cloth OR 1 side With bonding layer OR 1 side With anti-slip texture |
ZXZRS20001V | 2.0+/-0.05 | 70 | 5-6 | 250 | Black/Red/White/Green/Blue | Roll OR Plate | |
Note: 1MPa =10.2 Kg/cm² 1N/mm =1.02 Kg/cm |
FKM RUBBER SHEET SPECIFICATION | ||||||
thk/mm | Weight kgs/m² Per Roll | Width/m | Length/m | Insertion | ||
S.G1.9g/cm³ | S.G2.0g/cm³ | Material | Layers | |||
1 | 18.24 | 24.00 | Standard width | 5m/10m/15m/20m | Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas | / |
1.5 | 29.64 | 39.00 | Standard width | 5m/10m/15m/20m | / | |
1.7 | 34.2 | 45.00 | Standard width | 5m/10m/15m/20m | 1PLY | |
2 | 41.04 | 54.00 | Standard width | 5m/10m/15m/20m | 1PLY | |
3 | 63.84 | 84.00 | Standard width | 5m/10m/15m/20m | 1PLY | |
4 | 86.64 | 114.00 | Standard width | 5m/10m/15m/20m | 1PLY | |
5 | 109.44 | 144.00 | Standard width | 5m/10m/15m/20m | 2PLY | |
6 | 132.24 | 174.00 | Standard width | 5m/10m/15m/20m | 3PLY | |
8 | 177.84 | 234.00 | Standard width | 5m/10m/15m/20m | 4PLY | |
10 | 223.44 | 294.00 | Standard width | 5m/10m/15m/20m | 5PLY | |
12 | 269.04 | 354.00 | Standard width | 5m/10m/15m/20m | 8PLY | |
15 | 337.44 | 444.00 | Standard width | 5m/10m/15m/20m | 10PLY | |
20 | 76 | 80 | Standard width | 5m/10m/15m/20m | ≥10PLY | |
25 | 95 | 100 | Standard width | 5m/10m/15m/20m | ≥10PLY | |
30 | 114 | 120 | Standard width | 5m/10m/15m/20m | ≥10PLY | |
35 | 133 | 140 | Standard width | 5m/10m/15m/20m | ≥10PLY | |
50 | 190 | 200 | Standard width | 5m/10m/15m/20m | ≥10PLY |
* Tabulated weight values are provided for informational purposes only. As dimensional specifications of rubber sheets are fully customizable per project requirements, actual weights may vary accordingly. For precise weight calculations tailored to your application, please submit specific technical parameters to our engineering team.
* Please ensure the product meets your application specification prior to order placement.
Insertion materials:
![]() |
![]() |
![]() |
![]() |
Nylon canvas | Mesh fabric | Nylon mesh fabric | Encrypted canvas |
Viton rubber sheet is trusted across critical industries. Chemical processing and oil & gas operations rely on it for leak-proof seals in harsh chemical contact and fuel systems. Automotive and aerospace engineers use its heat stability for engine gaskets, fuel system seals, and aircraft components exposed to high temperatures and fluids.Heavy machinery and pump systems benefit from its durability in hydraulic seals and valve diaphragms. Electronics manufacturers deploy it where heat-resistant insulation and sealing are critical. In every case, this Viton sheet delivers reliable performance and peace of mind, making it the go-to high quality rubber sheet for industrial sealing and protection.
