PRODUCT

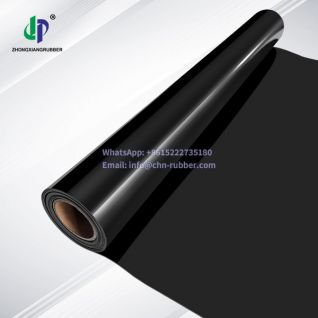

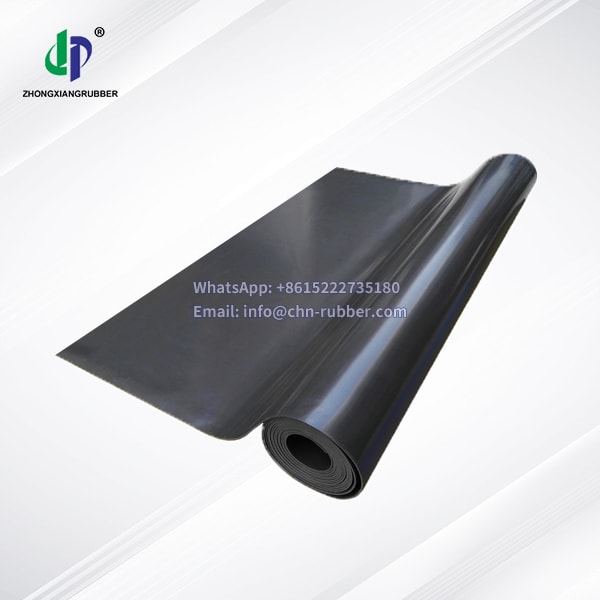

Viton rubber sheet normal quality density 2.0 oil resistant and corrosion resistant

Product ID : ZXZRS20101V

Product Attributes :

Reference Standard: ASTM standard

Quality Certification: SGS RoHS2.0 REACH

Thickness: Available in 1mm to 100mm; Thickness over 15mm, available in sheet form

Specification (W/L):

Width: Standard 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs

Length: Standard 5mtrs 10mtrs 15mtrs 20mtrs. Available upon request

Color: Black

Packing Information: Regular / Up to your choice

Packed with plastic film.

Packed with plastic film and with PP woven bag.

Wooden pallet.

According to the customer request, fixed-length or heavy package.

Product Supply Form: Roll / Sheet or Plate / Strip

Get more information:

Email: info@chn-rubber.com

P.H & Wechat: 008615222735180

Product Description

Viton rubber strip is cut from FKM sheet. The vulcanized fkm rubber sheet is the best quality among most rubber sheet products, and its performance is also very high, which can meet the high corrosion resistance fuel that other rubber sheets do not have. and chemical resistance. Good mechanical properties; oil resistance, corrosion resistance, wear resistance, good sealing performance against gases and some chemicals, can be used in aerospace and oil, gas and other fields, according to product requirements, performance in high temperature and extremely harsh corrosive environments protrude. Through specific cutting solutions, we are from china viton rubber sheet manufacturer, and we can provide customers with various fkm sheets, fluorine strips, various widths, thicknesses, parameters, sizes, colors, etc. If you are looking for a high performance rubber sheet, I think FKM sheet is a good choice, we can quote for you, through your inquiry or leave a message.

KEY FEAYURES

Has good elasticity
Viton High Performance Rubber Sheet
Excellent hydrocarbon and chemical resistance
Excellent corrosion resistance
It will not be damaged when used in a certain high temperature range
Excellent ozone resistance, anti-aging
Excellent acid resistance

FKM SHEET PERFORMANCE & SPECIFICATIONS

FKM RUBBER SHEET TECHNICAL PARAMATERS
Code	Specific Gravity	Hardness (+/-5)	Tensile Strength	Elongation at Break	Colour	Finish Type
Code	g/cm³	Shore A	Mpa	(min) %	Colour	Finish Type
STANDARD	ASTM D397	ASTM D2240	ASTM D412	ASTM D412	---	---
ZXZRS20101V	2.0+/-0.05	70	5-6	250	Black	Smooth in both sides OR 1/2 With sides cloth OR 1 side With bonding layer OR 1 side With anti-slip texture
ZXZRS20201V	2.0+/-0.05	70	5-6	250	Red
ZXZRS20301V	2.0+/-0.05	70	5-6	250	White

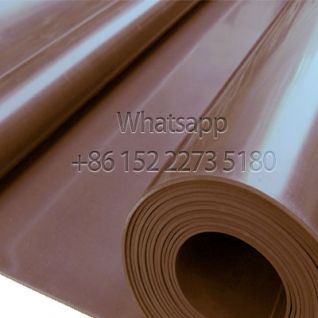

ZXZRS20601V	2.0+/-0.05	70	5-6	250	Brown
ZXZRS20801V	2.0+/-0.05	70	5-6	250	Yellow
Note: 1MPa =10.2 Kg/cm² 1N/mm =1.02 Kg/cm
SPECIFICATION
Item	Thickness	Width	Length	Insertion		Weight
Item	mm	m	m	Material	Layers	KGS/m²	LB/ft²
1	1	Standard width	5m/10m/15m/20m	Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas	/	24	4.92
2	1.5	Standard width	5m/10m/15m/20m		/	39	7.99
3	1.7	Standard width	5m/10m/15m/20m		1PLY	45	9.22
4	2	Standard width	5m/10m/15m/20m		1PLY	54	11.06
5	3	Standard width	5m/10m/15m/20m		1PLY	84	17.20
6	4	Standard width	5m/10m/15m/20m		1PLY	114	23.55
7	5	Standard width	5m/10m/15m/20m		2PLY	144	29.49
8	6	Standard width	5m/10m/15m/20m		3PLY	174	35.64
9	8	Standard width	5m/10m/15m/20m		4PLY	234	47.92
10	10	Standard width	5m/10m/15m/20m		5PLY	294	60.21
11	12	Standard width	5m/10m/15m/20m		8PLY	354	72.50
12	15	Standard width	5m/10m/15m/20m		10PLY	444	90.93
13	20	Standard width	5m/10m/15m/20m		≥10PLY	96	19.66
14	25	Standard width	5m/10m/15m/20m		≥10PLY	120	24.58
15	30	Standard width	5m/10m/15m/20m		≥10PLY	144	29.49
16	50	Standard width	5m/10m/15m/20m		≥10PLY	240	49.15

* Tabulated weight values are provided for informational purposes only. As dimensional specifications of rubber sheets are fully customizable per project requirements, actual weights may vary accordingly. For precise weight calculations tailored to your application, please submit specific technical parameters to our engineering team.

* Please ensure the product meets your application specification prior to order placement.

Insertion materials:


Nylon canvas	Mesh fabric	Nylon mesh fabric	Encrypted canvas

FKM sheet is widely used in the automotive industry for the transportation of biodiesel, Viton rubber sheets cut into rolls, sheets, and converted into viton gaskets and strips.Although Viton rubber is highly resistant to hydrocarbons, oils, acids and chemicals, it cannot be used where resistance to ketones is required.
