PRODUCT
Rubber gasket material roll of SBR rubber vulcanization 3Mpa
Reference Standard: ASTM standard
Quality Certification: SGS RoHS2.0 REACH
Thickness: 3mm; Thickness over 15mm, available in sheet form
Specification (W/L):
Width: Standard 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: Standard 5mtrs 10mtrs 15mtrs 20mtrs. Available upon request
Color: Black
Packing Information: Regular / Up to your choice
Packed with plastic film.
Packed with plastic film and with PP woven bag.
Wooden pallet.
According to the customer request, fixed-length or heavy package.
Product Supply Form: Roll / Sheet or Plate / Strip
Get more information:
Email: info@chn-rubber.com
P .H & Wechat: 008615222735180

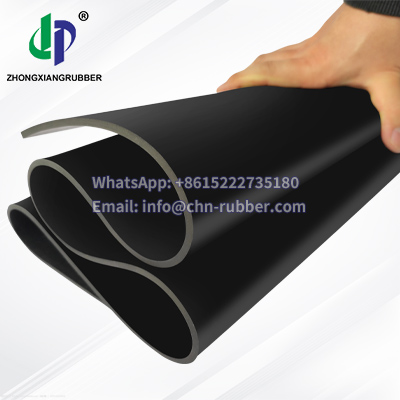

Premium black SBR (Styrene-Butadiene Rubber) sheets, available in convenient and economical rubber gasket material rolls. Designed for demanding applications, this material has a high specific gravity of 1.6 g/cm³ and a tensile strength of 3 MPa for increased durability and performance. Tianjin China Rubber Co., Ltd is a reputable gasket sheet manufacturers, designed for reliability in industrial sealing and general purpose applications. SBR's strong composition makes it an excellent choice where a tougher, denser rubber is required. Continuous rubber gasket material rolls allow for efficient cutting of long strips, large gaskets or multiple small parts while minimizing waste.
KEY FEATURES
- High Density (Specific Gravity 1.6): Ideal for applications requiring greater stability or shock absorption.
- Dependable Strength (3 MPa Tensile Strength): Withstands moderate tensile and pulling forces, ensuring integrity in gasket applications and under mechanical stress.
- Convenient Roll Format: Available in rubber gasket material rolls for easy handling, storage, and efficient cutting of custom lengths and shapes. Ideal for production lines or large projects.
- Excellent Gasket Material: Ideal for creating durable seals at low pressures against water, air, and non-corrosive fluids. (Note: SBR is not recommended for use with oils, fuels, solvents, or strong chemicals).
- Good Wear Resistance: Excellent resistance to wear and friction in dynamic applications.
- Versatile Black SBR: Durable material for gaskets, liners, bumpers, skirts, and a variety of industrial components.
SBR RUBBER SHEET PERFORMANCE & SPECIFICATIONS
| SBR RUBBER SHEET TECHNICAL PARAMETERS | ||||||||
| Code | Specific Gravity | Hardness (+/-5) | Tensile Strength | Elongation at break | Colour | Finish Type | ||
| g/cm³ | Shore A | Mpa | (min） % | |||||
| STANSDARD | ASTM D397 | ASTM D2240 | ASTM D412 | ASTM D412 | --- | --- | ||
| ZXZRS20101S | 1.6+/-0.05 | 70 | 2.5-3 | 180 | Black | Smooth in both sides OR 1/2 With sides cloth OR 1 side With anti-slip texture | ||
| ZXZRS20201S | 1.6+/-0.05 | 70 | 2.5-3 | 180 | Red | |||
| ZXZRS20401S | 1.6+/-0.05 | 70 | 2.5-3 | 180 | Green | |||
| ZXZRS20001S | 1.6+/-0.05 | 70 | 2.5-3 | 180 | customized production according to demand | |||
| Note: 1MPa =10.2 Kg/cm² 1N/mm =1.02 Kg/cm | ||||||||
| SPECIFICATION | ||||||||
| Item | Thickness | Width | Length | Insertion | Weight | |||
| mm | m | m | Material | Layers | KGS/m² | LB/ft² | ||
| 1 | 1 | Standard width | 5m/10m/15m/20m | Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas | / | 15.36 | 3.15 | |
| 2 | 1.5 | Standard width | 5m/10m/15m/20m | / | 24.96 | 5.11 | ||
| 3 | 1.7 | Standard width | 5m/10m/15m/20m | 1PLY | 28.80 | 5.90 | ||
| 4 | 2 | Standard width | 5m/10m/15m/20m | 1PLY | 34.56 | 7.08 | ||
| 5 | 3 | Standard width | 5m/10m/15m/20m | 1PLY | 53.76 | 11.01 | ||
| 6 | 4 | Standard width | 5m/10m/15m/20m | 1PLY | 72.96 | 14.94 | ||
| 7 | 5 | Standard width | 5m/10m/15m/20m | 2PLY | 92.16 | 18.87 | ||
| 8 | 6 | Standard width | 5m/10m/15m/20m | 3PLY | 111.36 | 22.81 | ||
| 9 | 8 | Standard width | 5m/10m/15m/20m | 4PLY | 149.76 | 30.67 | ||
| 10 | 10 | Standard width | 5m/10m/15m/20m | 5PLY | 188.16 | 38.54 | ||
| 11 | 12 | Standard width | 5m/10m/15m/20m | 8PLY | 226.56 | 46.40 | ||
| 12 | 15 | Standard width | 5m/10m/15m/20m | 10PLY | 284.16 | 58.20 | ||
| 13 | 20 | Standard width | 5m/10m/15m/20m | ≥10PLY | 64.00 | 13.11 | ||
| 14 | 25 | Standard width | 5m/10m/15m/20m | ≥10PLY | 80.00 | 16.38 | ||
| 15 | 30 | Standard width | 5m/10m/15m/20m | ≥10PLY | 96.00 | 19.66 | ||
| 16 | 50 | Standard width | 5m/10m/15m/20m | ≥10PLY | 160.00 | 32.77 | ||
* Tabulated weight values are provided for informational purposes only. As dimensional specifications of rubber sheets are fully customizable per project requirements, actual weights may vary accordingly. For precise weight calculations tailored to your application, please submit specific technical parameters to our engineering team.
* Please ensure the product meets your application specification prior to order placement.
Insertion materials:
 |
 |
 |
 |
| Nylon canvas | Mesh fabric | Nylon mesh fabric | Encrypted canvas |
TARGET APPLICATIONS
When you need a reliable and convenient sealing solution, look no further than this roll of rubber gasket material.
- 1. Industrial Gasket Cutting (Water, Air, Low Pressure)
- 2. Heavy Duty Shock Absorbing Pads
- 3. Impact Absorbing Pads and Bumpers
- 4. Wear Strips and Skirts
- 5. Flange Gaskets (Non-Critical, Low Pressure)
- 6. Mounting Pads
- 7. General Industrial Manufacturing
