PRODUCT

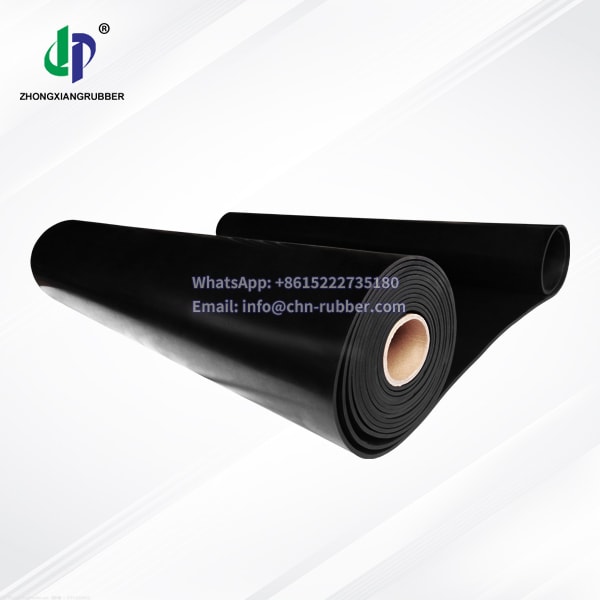

2Mpa Tensile strength SBR non reinforced rubber sheet
Reference Standard: ASTM standard
Quality Certification: SGS RoHS2.0 REACH

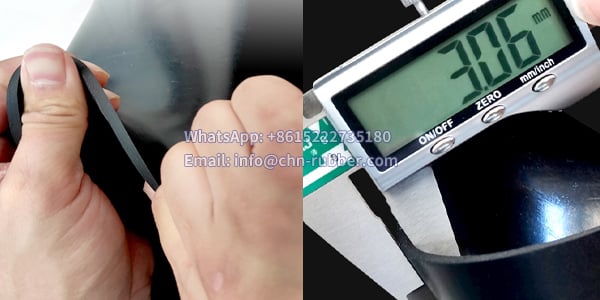

Thickness: 3mm; Thickness over 15mm, available in sheet form
Specification (W/L):
Width: Standard 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: Standard 5mtrs 10mtrs 15mtrs 20mtrs. Available upon request
Color: Black
Packing Information: Regular / Up to your choice
Packed with plastic film.
Packed with plastic film and with PP woven bag.
Wooden pallet.
According to the customer request, fixed-length or heavy package.
Product Supply Form: Roll / Sheet or Plate / Strip
Get more information:
Email: info@chn-rubber.com
P.H & Wechat: 008615222735180

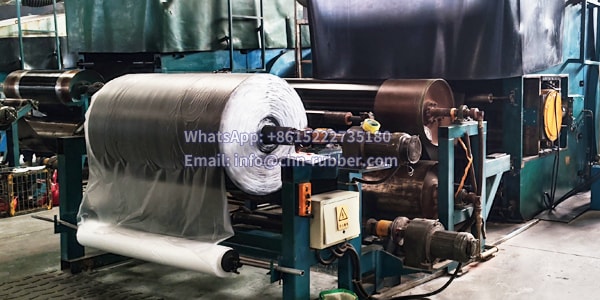

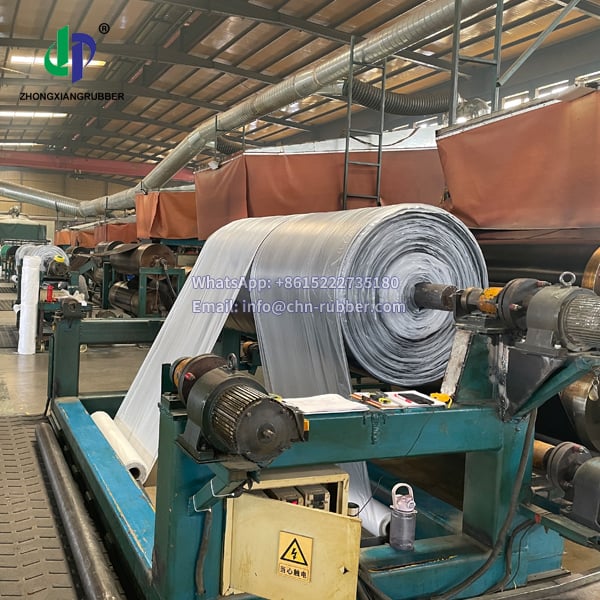

Certified to SGS and ASTM, our SBR rubber sheets are precision-engineered for industrial adaptability, blending cost-efficiency with robust performance. Utilizing styrene-butadiene copolymers and These rubber sheets are made of styrene-butadiene copolymer and an advanced rotational vulcanization process, ideal for dynamic and static sealing applications.
KEY FEATURES
- Robust Abrasion Resistance: Engineered to withstand surface wear in contact applications.
- Superior Impact Resistance: Effectively absorbs and dissipates impact energy, protecting underlying surfaces or components.
- High Mechanical Strength: Exhibits strong tensile and tear properties, ensuring integrity under load.
- Good Flexibility & Resilience: Allows for conformation to surfaces and recovers well from temporary deformation.
- Functional Temperature Range: Operates reliably within moderate temperature bands common in many industrial settings.
SBR RUBBER SHEET PERFORMANCE & SPECIFICATIONS
| SBR RUBBER SHEET TECHNICAL PARAMETERS |
||||||||
| Code | Specific Gravity | Hardness (+/-5) | Tensile Strength | Elongation at break | Colour | Finish Type |
||
| g/cm³ | Shore A | Mpa | (min） % | |||||
| STANSDARD | ASTM D397 | ASTM D2240 | ASTM D412 | ASTM D412 | --- | --- |
||
| ZXZRS20101S | 1.7+/-0.05 | 75 | 2-2.5 | 160 | Black | Smooth in both sides OR 1/2 With sides cloth OR 1 side With anti-slip texture |
||
| ZXZRS20201S | 1.7+/-0.05 | 75 | 2-2.5 | 160 | Red | |||
| ZXZRS20401S | 1.7+/-0.05 | 75 | 2-2.5 | 160 | Green | |||
| ZXZRS20001S | 1.7+/-0.05 | 75 | 2-2.5 | 160 | Customized production according to demand | |||
| Note: 1MPa =10.2 Kg/cm² 1N/mm =1.02 Kg/cm |
||||||||
| SPECIFICATION | ||||||||
| Item | Thickness | Width | Length | Insertion | Weight |
|||
| mm | m | m | Material | Layers | KGS/m² | LB/ft² | ||
| 1 | 1 | Standard width | 5m/10m/15m/20m | Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas | / | 16.32 | 3.34 | |
| 2 | 1.5 | Standard width | 5m/10m/15m/20m | / | 26.52 | 5.43 | ||
| 3 | 1.7 | Standard width | 5m/10m/15m/20m | 1PLY | 30.60 | 6.27 | ||
| 4 | 2 | Standard width | 5m/10m/15m/20m | 1PLY | 36.72 | 7.52 | ||
| 5 | 3 | Standard width | 5m/10m/15m/20m | 1PLY | 57.12 | 11.70 | ||
| 6 | 4 | Standard width | 5m/10m/15m/20m | 1PLY | 77.52 | 15.88 | ||
| 7 | 5 | Standard width | 5m/10m/15m/20m | 2PLY | 97.92 | 20.06 | ||
| 8 | 6 | Standard width | 5m/10m/15m/20m | 3PLY | 118.32 | 24.23 | ||
| 9 | 8 | Standard width | 5m/10m/15m/20m | 4PLY | 159.12 | 32.59 | ||
| 10 | 10 | Standard width | 5m/10m/15m/20m | 5PLY | 199.92 | 40.94 | ||
| 11 | 12 | Standard width | 5m/10m/15m/20m | 8PLY | 240.72 | 49.30 | ||
| 12 | 15 | Standard width | 5m/10m/15m/20m | 10PLY | 301.92 | 61.83 | ||
| 13 | 20 | Standard width | 5m/10m/15m/20m | ≥10PLY | 68.00 | 13.92 | ||
| 14 | 25 | Standard width | 5m/10m/15m/20m | ≥10PLY | 85.00 | 17.41 | ||
| 15 | 30 | Standard width | 5m/10m/15m/20m | ≥10PLY | 102.00 | 20.89 | ||
| 16 | 50 | Standard width | 5m/10m/15m/20m | ≥10PLY | 170.00 | 32.82 | ||
* Tabulated weight values are provided for informational purposes only. As dimensional specifications of rubber sheets are fully customizable per project requirements, actual weights may vary accordingly. For precise weight calculations tailored to your application, please submit specific technical parameters to our engineering team.
* Please ensure the product meets your application specification prior to order placement.
Insertion materials:
 |
 |
 |
 |
| Nylon canvas | Mesh fabric | Nylon mesh fabric | Encrypted canvas |
