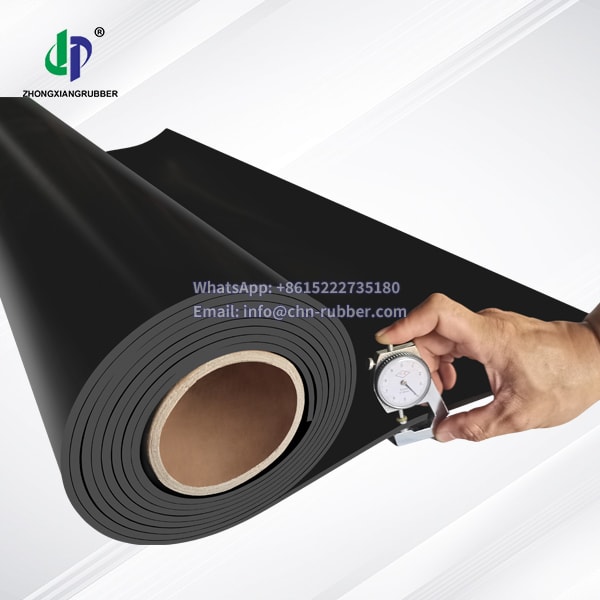

Commercial rubber sheet 1.5g/cm³ nitrile rubber gasket sheet roll
Reference Standard: ASTM standard
Quality Certification: SGS RoHS2.0 REACH
Thickness: 3mm; Thickness over 15mm, available in sheet form
Specification (W/L):
Width: Standard 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: Standard 5mtrs 10mtrs 15mtrs 20mtrs. Available upon request
Color: Black

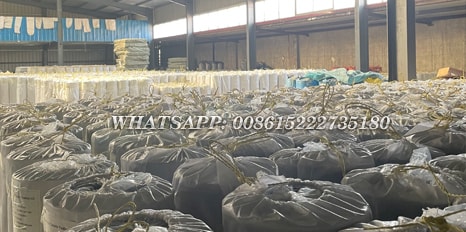

Packing Information: Regular / Up to your choice

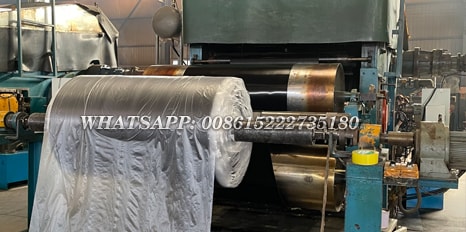

Packed with plastic film.
Packed with plastic film and with PP woven bag.
Wooden pallet.
According to the customer request, fixed-length or heavy package.
Product Supply Form: Roll / Sheet or Plate / Strip
Get more information:
Email: info@chn-rubber.com
P .H & Wechat: 008615222735180
Nitrile rubber gasket is a versatile and durable material commonly used in a variety of industries. This type of rubber sheet is made from a synthetic rubber compound called nitrile butadiene rubber (NBR), which offers excellent resistance to oil, fuel, and chemicals. It is a popular choice for gasket applications due to its excellent sealing properties, effectively preventing leaks and sealing joints even in harsh environments. One of the main advantages of nitrile rubber gaskets is their ability to withstand high temperatures, making them suitable for a wide range of applications.
NITRILE RUBBER SHEET PERFORMANCE & SPECIFICATIONS
| SBR RUBBER SHEET TECHNICAL PARAMETERS | ||||||||
| Code | Specific Gravity | Hardness (+/-5) | Tensile Strength | Elongation at Break | Colour | Finish Type | ||
| g/cm³ | Shore A | Mpa | (min） % | |||||
| STANSDARD | ASTM D397 | ASTM D2240 | ASTM D412 | ASTM D412 | --- | --- | ||
| ZXZRS20101S | 1.5+/-0.05 | 65 | 3-4 | 200 | Black | Smooth in both sides OR 1/2 With sides cloth OR 1 side With anti-slip texture | ||
| ZXZRS20201S | 1.5+/-0.05 | 65 | 3-4 | 200 | Red | |||
| ZXZRS20401S | 1.5+/-0.05 | 65 | 3-4 | 200 | Green | |||
| ZXZRS20001S | 1.5+/-0.05 | 65 | 3-4 | 200 | Customized production according to demand | |||
| Note:1MPa =10.2 Kg/cm² 1N/mm =1.02 Kg/cm | ||||||||
| SPECIFICATION | ||||||||
| Item | Thickness | Width | Length | Insertion | Weight | |||
| mm | m | m | Material | Layers | KGS/m² | LB/ft² | ||
| 1 | 1 | Standard width | 5m/10m/15m/20m | Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas | / | 14.40 | 2.87 | |
| 2 | 1.5 | Standard width | 5m/10m/15m/20m | / | 23.40 | 4.80 | ||
| 3 | 1.7 | Standard width | 5m/10m/15m/20m | 1PLY | 27.00 | 5.53 | ||
| 4 | 2 | Standard width | 5m/10m/15m/20m | 1PLY | 32.40 | 6.64 | ||
| 5 | 3 | Standard width | 5m/10m/15m/20m | 1PLY | 50.40 | 10.32 | ||
| 6 | 4 | Standard width | 5m/10m/15m/20m | 1PLY | 68.40 | 14.01 | ||
| 7 | 5 | Standard width | 5m/10m/15m/20m | 2PLY | 86.40 | 17.70 | ||
| 8 | 6 | Standard width | 5m/10m/15m/20m | 3PLY | 104.40 | 21.38 | ||
| 9 | 8 | Standard width | 5m/10m/15m/20m | 4PLY | 140.40 | 28.75 | ||
| 10 | 10 | Standard width | 5m/10m/15m/20m | 5PLY | 176.40 | 36.13 | ||
| 11 | 12 | Standard width | 5m/10m/15m/20m | 8PLY | 212.40 | 43.50 | ||
| 12 | 15 | Standard width | 5m/10m/15m/20m | 10PLY | 266.40 | 54.56 | ||
| 13 | 20 | Standard width | 5m/10m/15m/20m | ≥10PLY | 60.00 | 12.29 | ||
| 14 | 25 | Standard width | 5m/10m/15m/20m | ≥10PLY | 75.00 | 15.36 | ||
| 15 | 30 | Standard width | 5m/10m/15m/20m | ≥10PLY | 90.00 | 18.43 | ||
| 16 | 50 | Standard width | 5m/10m/15m/20m | ≥10PLY | 150.00 | 30.72 | ||
* Tabulated weight values are provided for informational purposes only. As dimensional specifications of rubber sheets are fully customizable per project requirements, actual weights may vary accordingly. For precise weight calculations tailored to your application, please submit specific technical parameters to our engineering team.
* Please ensure the product meets your application specification prior to order placement.
Insertion materials:
 |
 |
 |
 |
| Nylon canvas | Mesh fabric | Nylon mesh fabric | Encrypted canvas |
They can withstand temperatures ranging from -35°C to 100°C, ensuring their stability and performance in hot and cold conditions. This makes them ideal for use in automotive engines, machinery, refrigeration systems and many other industrial environments where extreme temperature changes are common. In addition, nitrile rubber gaskets have excellent mechanical properties, making them resistant to compression, tearing and abrasion. This means they maintain their shape and integrity even under pressure, ensuring a reliable and long-lasting seal. They are also very flexible, easy to install and conform to irregular surfaces.
In summary, nitrile rubber gaskets offer a variety of benefits that make them a popular choice for a variety of industrial applications. With their excellent sealing properties, high temperature resistance, mechanical durability and chemical resistance, they provide reliable and efficient solutions for creating tight and secure seals, preventing leaks and ensuring optimal performance across industries.
